Crushing Equipment • K-IC Series
K-IC 70 Compact Impact Crusher
By Komplet America — Exclusive Distributor, North & Central America

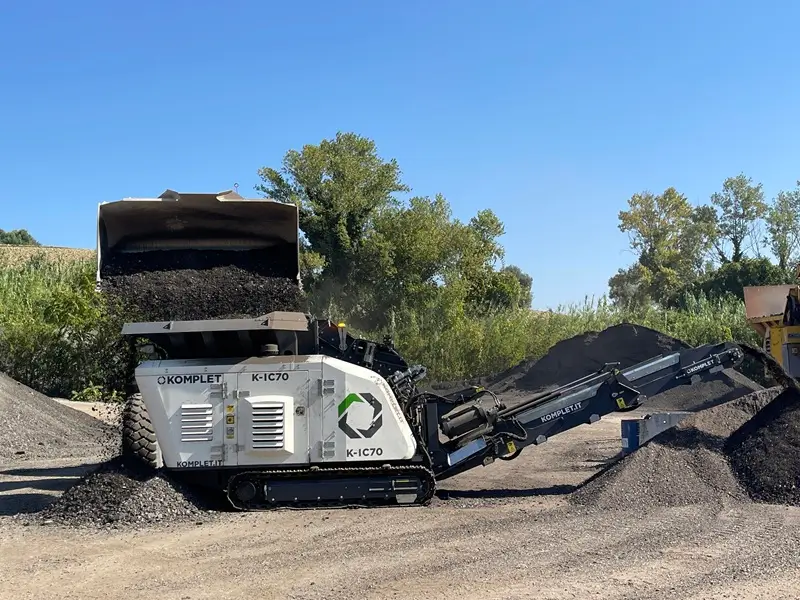

The Komplet K-IC 70 is a tracked, mobile horizontal shaft impact crusher (HSI) powered by a 100 hp Doosan Tier 4 Final diesel engine. It produces cubical, spec-quality aggregate at up to 90 US tons per hour from concrete, asphalt, recycled asphalt pavement (RAP), brick, block, ceramics, glass, and softer-to-medium rock. Komplet America’s only impact crusher, the K-IC 70 delivers the cubical particle shape jaw crushers cannot — making it the right choice for contractors producing DOT-spec aggregate, asphalt recyclers reclaiming RAP, and recycling operations where end-product shape and saleability matter. Weighing 28,600 lbs and measuring 7’2″ wide, it ships with dust suppression standard for OSHA silica compliance.
Specifications
Engine | 100 hp Doosan Tier 4 Final Diesel |
Crusher Type | Horizontal Shaft Impactor (HSI) — Blow Bar |
Inlet Opening | 25″ × 20″ |
Production | Up to 90 US tons per hour |
Output Size | 3/4″ to 3-1/4″ |
Weight | 28,600 lbs |
Working Dimensions (L × W × H) | 28′ × 7’2″ × 8’5″ |
Transport Dimensions (L × W × H) | 17’4″ × 7’2″ × 8’5″ |
Drive System | Steel tracks with bolted-on rubber pads — self-propelled |
Best Materials | Concrete, asphalt, RAP, brick, block, ceramics, glass, softer-to-medium rock |
Standard Features | Dust suppression, magnetic separation, vibrating feeder with chamber level sensor, wireless remote control |
Warranty | 12 months or 1,000 hours, whichever comes first |
Base Price | $285,948.00 (includes magnetic attachment) |
Equipment prices are subject to change based on dealer location, availability, and any additional features or customizations. Prices do not include taxes, shipping, or installation fees, which may apply depending on your region. Contact Komplet America at 908-369-3340 or visit kompletamerica.com for current pricing.
Frequently Asked Questions
What is the Komplet K-IC 70 compact impact crusher used for?
The Komplet K-IC 70 is a mobile compact impact crusher used to produce cubical, spec-quality aggregate from concrete, asphalt, recycled asphalt pavement (RAP), brick, block, ceramics, glass, and softer-to-medium rock. It is built for contractors, asphalt recyclers, rental fleets, and recycling operations that need the cubical particle shape jaw crushers cannot deliver. It is the right choice for producing DOT-spec aggregate, reducing RAP for new asphalt mix, and crushing for 3-D concrete applications where shape and gradation matter.
What is the difference between the K-IC 70 impact crusher and a jaw crusher?
Jaw crushers and impact crushers do different jobs. A jaw crusher uses two heavy steel plates to compress and fracture rock — best for primary reduction of hard, abrasive material like granite, basalt, and reinforced concrete. An impact crusher like the K-IC 70 uses high-speed rotating blow bars to shatter material against impact aprons, producing a more cubical, spec-friendly product. The K-IC 70 excels on softer-to-medium rock, asphalt and RAP recycling, and applications where end-product cubicity matters. Many operations run a Komplet jaw crusher (K-JC 704 PLUS or K-JC 805) as primary reduction, then feed the K-IC 70 as a secondary crusher to shape the output for DOT spec or asphalt mix.
What is the production capacity of the K-IC 70?
The K-IC 70 produces up to 90 US tons per hour, depending on material type, input size, and output setting. It uses a 25 by 20 inch inlet opening powered by a 100 hp Doosan Tier 4 Final diesel engine. Output size is adjustable from 3/4 inch to 3-1/4 inch, allowing operators to dial in DOT-spec gradations or any specific finished product target. A vibrating feeder with chamber level sensor controls feed rate to maximize throughput and prevent overload.
Can the K-IC 70 process recycled asphalt pavement (RAP)?
Yes. The K-IC 70 is purpose-built for RAP reduction. The horizontal shaft impactor design and adjustable impact aprons reduce RAP to fine, well-graded material suitable for use in new asphalt production. Asphalt recyclers and paving contractors use the K-IC 70 to turn millings, broken pavement, and stockpiled RAP into reusable feedstock — eliminating disposal costs and reducing the cost of new aggregate. Cubical particle shape is critical for asphalt mix performance, and the K-IC 70 delivers it.
What materials can the K-IC 70 crush?
The K-IC 70 handles concrete, asphalt, recycled asphalt pavement (RAP), clay and concrete bricks and blocks, ceramics, porcelain, glass, and softer-to-medium natural rock. It is best suited for materials where cubical output and high reduction ratios matter. For very hard, abrasive virgin stone like granite or basalt, a jaw crusher (K-JC 704 PLUS or K-JC 805) is the better primary choice, with the K-IC 70 used as a secondary crusher to shape the jaw output. The 25 by 20 inch inlet allows feed material up to 16 to 18 inches across in most cases.
Does the K-IC 70 come with dust suppression?
Yes. Dust suppression is standard equipment on the K-IC 70 — a critical advantage for OSHA respirable crystalline silica compliance (50 micrograms per cubic meter PEL) on virgin stone, concrete, and C&D crushing jobs. The dust suppression system uses water spray at the inlet and discharge to control airborne silica during operation. This is standard rather than optional because most K-IC 70 applications involve regulated silica exposure.
Who distributes and services the K-IC 70 in North America?
Komplet America is the exclusive distributor of Komplet equipment throughout North and Central America, including the United States, Canada, Mexico, Central America, and surrounding islands. Komplet America is based in Hillsborough, New Jersey, and sells through an authorized dealer network. Wear parts including blow bars, impact aprons, belts, and filters are stocked at the NJ warehouse — Komplet America forecasts equipment and parts a year in advance to minimize customer downtime. Sales and service: 908-369-3340.
Can I finance the K-IC 70?
Yes. Komplet America offers equipment financing through Komplet Capital, the in-house finance team. Features include 100% financing available, term options of 36, 48, 60, and 72 months, and 24-hour approval. Pricing for the K-IC 70 starts at $285,948.00 for the base unit with magnetic attachment. Pre-owned options may also be available with typical capital savings of 40 to 70 percent versus new. Visit kompletamerica.com/equipment-financing or call 908-369-3340 to speak with a financing specialist.
