Screening Equipment • K-TS Series

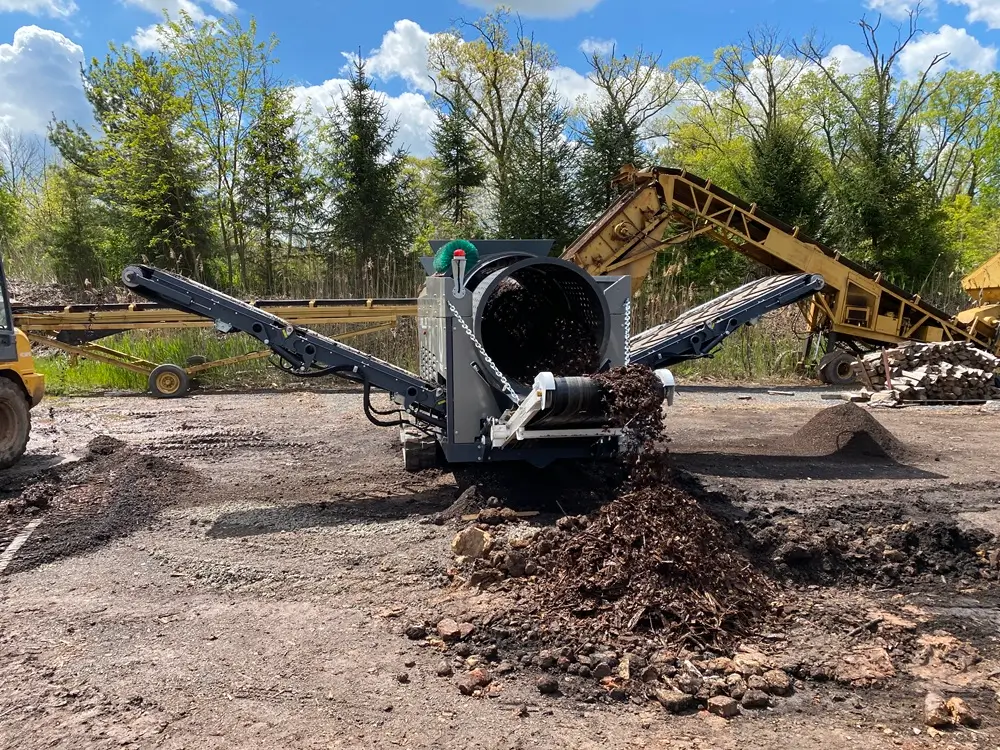

K-TS 30 Compact Trommel Screener
By Komplet America — Exclusive Distributor, North & Central America
The Komplet K-TS 30 is the smaller of Komplet America’s two mobile trommel screeners — a tracked, diesel-over-electric unit producing up to 80 US tons per hour (60 cubic meters per hour) in three fractions (fines, mids, overs). A Mitsubishi diesel engine drives an onboard 23 kW genset, and that electricity powers everything — hopper, trommel drum, and discharge belts — through a fully electric drive system that minimizes wear, hydraulic service intervals, and operating costs. Unlike vibrating scalping screeners, the K-TS 30 uses a slowly rotating perforated drum to gently tumble material — making it the right tool for topsoil, compost, mulch, green waste, mixed C&D fines, and wet, sticky, or cohesive soil that vibrating screens cannot handle efficiently. Available with two interchangeable drum configurations (68″ × 51″ or 103″ × 51″), the K-TS 30 weighs 8,818 lbs and sets up in under 30 minutes — built for landscape supply yards, composting facilities, plant nurseries, municipal landfill operations, and recycling facilities working in tight-access conditions or smaller daily volumes.
Specifications
Power Plant | Mitsubishi diesel engine driving 380V genset (diesel-over-electric) |
Genset Output | 23 kW |
Drive System | Fully electric drive — hopper, drum, and discharge belts powered by 380V from the onboard genset |
Screener Type | Compact mobile trommel screener — rotating drum |
Drum Configurations | 68″ × 51″ or 103″ × 51″ (configurable at order) |
Fractions | 3-way: fines, mids, overs |
Production | Up to 80 US tons per hour (60 cubic meters per hour) |
Weight | 8,818 lbs |
Setup Time | Under 30 minutes |
Drive Chassis | Tracked mobile, self-propelled (verify with sales for current track config) |
Best Materials | Topsoil, compost, mulch, green/yard waste, mixed C&D fines, wet/sticky/cohesive soil, organic-rich material |
Standard Features | Wireless remote control, fully electric drive system, self-contained onboard power |
Warranty | 12 months or 1,000 hours, whichever comes first |
Base Price | $159,714.36 (base unit) |
Equipment prices are subject to change based on dealer location, availability, and any additional features or customizations. Prices do not include taxes, shipping, or installation fees, which may apply depending on your region. Contact Komplet America at 908-369-3340 or visit kompletamerica.com for current pricing.
Frequently Asked Questions
What is the Komplet K-TS 30 trommel screener used for?
The Komplet K-TS 30 is a compact mobile trommel screener used to separate and size topsoil, compost, mulch, green and yard waste, mixed C&D fines, and wet, sticky, or cohesive material on-site. It is built for landscape supply yards, topsoil producers, composting facilities, plant nurseries, site contractors, recycling facilities, municipalities, and landfill operations that work in tight-access conditions or process smaller daily volumes than the K-TS 40 supports. As Komplet America’s smaller trommel, it produces up to 80 US tons per hour in three finished material fractions: fines, mids, and overs.
What is the difference between a trommel screener and a vibrating scalping screener?
Trommel screeners and vibrating scalping screeners do different jobs. A trommel uses a slowly rotating perforated drum (typically 10-30 RPM) that tumbles material along a slight downward incline — the gentle rolling action is ideal for moist, sticky, organic, and fibrous materials. A vibrating scalping screener like the Kompatto 5030 uses a sloping deck with high-frequency vibration to shake material across the screen — ideal for dry crushed aggregate, clean stone, and dry recycled concrete aggregate (RCA). Use a trommel for topsoil at field moisture, compost, mulch, mixed C&D fines, and excavated soil. Use a vibrating scalping screener for dry aggregate, RCA, and gravel where high vibration is more efficient.
What is the production capacity of the K-TS 30?
The K-TS 30 produces up to 80 US tons per hour (or 60 cubic meters per hour) in three fractions, depending on material type, moisture, drum configuration, and feed rate. Production is most consistent on topsoil, compost, mulch, and mixed C&D fines that match the drum’s perforation pattern. The K-TS 30 is the right machine when production needs are under 80 tph — for higher-volume operations, the K-TS 40 (up to 120 tph) is the better choice. Setup time is under 30 minutes from transport configuration to operating, with one operator handling the full sequence by wireless remote.
What drum configurations are available for the K-TS 30?
The K-TS 30 is available with two drum configurations: a 68-inch by 51-inch drum and a 103-inch by 51-inch drum. The longer 103-inch drum provides more screening area for difficult material — wet topsoil, fibrous compost, mixed C&D fines — and is the right choice when material spends more time in the drum to achieve clean separation. The shorter 68-inch drum offers maximum mobility and reduced footprint when site space and transport flexibility matter most. Drum configuration is selected at order — Komplet America’s team can advise on the right configuration for your application.
Why does the K-TS 30 use a diesel-over-electric drive system?
The K-TS 30 uses a diesel-over-electric architecture. A Mitsubishi diesel engine drives an onboard 23 kW 380V genset, and the genset’s electrical output powers every functional component — the feed hopper, the trommel drum rotation, and the discharge conveyor belts. This is different from a hydraulic-drive trommel (where the diesel engine directly powers hydraulic pumps that drive each component) and different from a pure-electric trommel (where grid power drives everything). Diesel-over-electric delivers significantly lower wear on drive components, fewer hydraulic service intervals, and lower operating costs per ton versus hydraulic-drive trommels — while keeping the off-grid mobility of a diesel-powered machine. Electric drive is the foundation of the K-TS series cost-effectiveness.
How does the K-TS 30 compare to the K-TS 40?
Both are mobile diesel-over-electric trommel screeners with the same 3-fraction output (fines, mids, overs) and the same Mitsubishi diesel + 380V genset architecture, but they target different production levels. The K-TS 30 is the smaller, lighter unit — up to 80 US tons per hour, 8,818 lbs operating weight, 23 kW genset, and drum options of 68 by 51 inches or 103 by 51 inches. The K-TS 40 is the larger unit — up to 120 US tons per hour, 25,353 lbs operating weight, 40 kW genset, and drum options of 126 by 55 inches or 171 by 43 inches. Choose the K-TS 30 when daily volume is under 80 tph or when mobility into tight access is the priority; choose the K-TS 40 when volume is 80 to 120 tph or when serious daily topsoil, compost, or C&D fines processing is the application. Many operations start with the K-TS 30 and scale up to the K-TS 40 as volume justifies.
Who distributes and services the K-TS 30 in North America?
Komplet America is the exclusive distributor of Komplet equipment throughout North and Central America, including the United States, Canada, Mexico, Central America, and surrounding islands. Komplet America is based in Hillsborough, New Jersey, and sells through an authorized dealer network. Wear parts including drum panels, brushes, belts, and electrical components are stocked at the NJ warehouse — Komplet America forecasts equipment and parts a year in advance to minimize customer downtime. Sales and service: 908-369-3340.
Can I finance the K-TS 30?
Yes. Komplet America offers equipment financing through Komplet Capital, the in-house finance team. Features include 100% financing available, term options of 36, 48, 60, and 72 months, and 24-hour approval. Pricing for the K-TS 30 starts at $159,714.36 for the base unit. Pre-owned options may also be available with typical capital savings of 40 to 70 percent versus new. Visit kompletamerica.com/equipment-financing or call 908-369-3340 to speak with a financing specialist.
