Screening Equipment • Kompatto Series

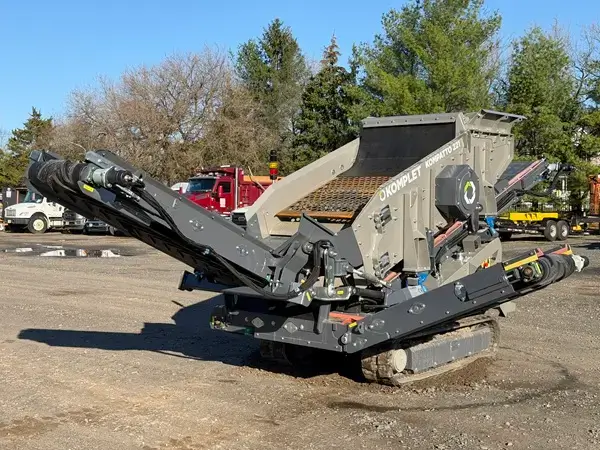

Kompatto 221 Compact Vibrating Screener
By Komplet America — Exclusive Distributor, North & Central America
The Komplet Kompatto 221 is one of the smallest self-propelled mobile vibrating screeners available — a tracked, compact double-deck unit powered by a 25 hp Tier 4 Final diesel engine. With two 7′ × 3.5′ screen decks, it produces up to 90 US tons per hour with a 3-way split (three end-product sizes simultaneously). Weighing only 7,275 lbs and fitting inside a single 20-foot shipping container, the Kompatto 221 is built specifically for limited-access job sites where larger screeners cannot operate. It can be fed directly by an excavator, backhoe, processed material pile, or the discharge belt of a Komplet K-JC 503 or K-JC 704 PLUS crusher — making it ideal for landscapers, hardscapers, plant nurseries, pool and basement contractors, and small-scale recyclers.
Specifications
Engine | 25 hp Tier 4 Final Diesel |
Screener Type | Double-deck vibrating screener (3 fractions) |
Screen Box | Two 7′ × 3.5′ decks |
Production | Up to 90 US tons per hour |
Splits | 3-way split (3 end-product sizes) |
Weight | 7,275 lbs |
Container | Fits inside a single 20-foot shipping container |
Drive System | Rubber tracks — self-propelled (verify with sales for current config) |
Best Materials | Topsoil, gravel, sand, aggregate, C&D debris, excavation waste, compost |
Standard Features | Wireless remote control, hydraulically folding conveyors, interchangeable screens and meshes, three extraction belts |
Optional Features | Dust suppression |
Warranty | 12 months or 1,000 hours, whichever comes first |
Base Price | $104,935.48 (base unit) |
Equipment prices are subject to change based on dealer location, availability, and any additional features or customizations. Prices do not include taxes, shipping, or installation fees, which may apply depending on your region. Contact Komplet America at 908-369-3340 or visit kompletamerica.com for current pricing.
Frequently Asked Questions
What is the Komplet Kompatto 221 vibrating screener used for?
The Komplet Kompatto 221 is a compact mobile double-deck vibrating screener used to separate and size topsoil, gravel, sand, aggregate, construction and demolition (C&D) debris, excavation waste, and compost directly on small or tight-access job sites. It is built for landscapers, hardscapers, plant nurseries, pool and basement waterproofing crews, driveway and paving contractors, site contractors, and general contractors who need precise material separation but cannot accommodate a larger screener like the Kompatto 5030 or 124.
How small is the Kompatto 221 and where can it fit?
The Kompatto 221 is one of the smallest self-propelled mobile screening plants available. It weighs 7,275 lbs and fits inside a single standard 20-foot shipping container — half the size most mobile screeners require for transport. Its compact footprint and tracked self-propelled chassis allow it to operate in limited-access areas where larger screeners cannot reach: residential lots, basement excavations, urban demolition sites, and confined yard spaces. Hydraulically folding conveyors reduce the transport profile further for tight gates and narrow accessways.
What is the production capacity of the Kompatto 221?
The Kompatto 221 produces up to 90 US tons per hour, depending on material type, moisture, screen mesh selection, and feed rate. Despite its small size, it matches the production rate of much larger screeners on consistent, well-graded feed material. The double-deck screen box (two 7-foot by 3.5-foot decks) delivers a 3-way split with three extraction belts — three different finished product sizes in a single pass.
What materials can the Kompatto 221 screen?
The Kompatto 221 screens topsoil, gravel, sand, aggregate, C&D debris, excavation waste, compost, and rubble. Interchangeable screen meshes let operators tune the machine for specific material types and target output sizes. The Kompatto 221 handles damp or sticky materials such as compost with a slight reduction in throughput, and operates best with dry, well-graded feed.
How does the Kompatto 221 work with Komplet crushers?
The Kompatto 221 is purpose-built to pair with Komplet’s K-JC 503 mini jaw crusher and K-JC 704 PLUS portable jaw crusher in an integrated crush-and-screen workflow. The crusher’s discharge belt feeds directly into the Kompatto 221, and the screener separates the crushed output into three end-product sizes for stockpiling or direct use. This setup gives small contractors a complete on-site material processing system in two compact, transportable machines — eliminating the need for a fixed plant or multiple loaders. The Kompatto 221 can also be fed directly by an excavator, backhoe, or processed material pile when used as a standalone screener.
How does the Kompatto 221 compare to the Kompatto 5030?
The Kompatto 221 and Kompatto 5030 occupy different ends of Komplet America’s screener lineup. The Kompatto 221 weighs 7,275 lbs, produces up to 90 tph, has a 7-foot by 3.5-foot double-deck screen box, and is built for tight-access work. The Kompatto 5030 weighs 26,455 lbs, produces up to 280 tph, has a 8-foot by 3’2″ / 7-foot by 3’2″ heavy-duty sloping screen box, and is Komplet America’s best-selling screener for higher-volume contractor and recycling work. Both are tracked, self-propelled, and feature 3-way split. Choose the 221 for limited-access landscaping, residential, and small-contractor operations; choose the 5030 for higher daily throughput, larger feed volumes, and yard-based screening.
Who distributes and services the Kompatto 221 in North America?
Komplet America is the exclusive distributor of Komplet equipment throughout North and Central America, including the United States, Canada, Mexico, Central America, and surrounding islands. Komplet America is based in Hillsborough, New Jersey, and sells through an authorized dealer network. Wear parts including screen mesh, belts, and filters are stocked at the NJ warehouse — Komplet America forecasts equipment and parts a year in advance to minimize customer downtime. Sales and service: 908-369-3340.
Can I finance the Kompatto 221?
Yes. Komplet America offers equipment financing through Komplet Capital, the in-house finance team. Features include 100% financing available, term options of 36, 48, 60, and 72 months, and 24-hour approval. Pricing for the Kompatto 221 starts at $104,935.48 for the base unit — the most affordable mobile screener in the Komplet lineup. Pre-owned options may also be available with typical capital savings of 40 to 70 percent versus new. Visit kompletamerica.com/equipment-financing or call 908-369-3340 to speak with a financing specialist.
