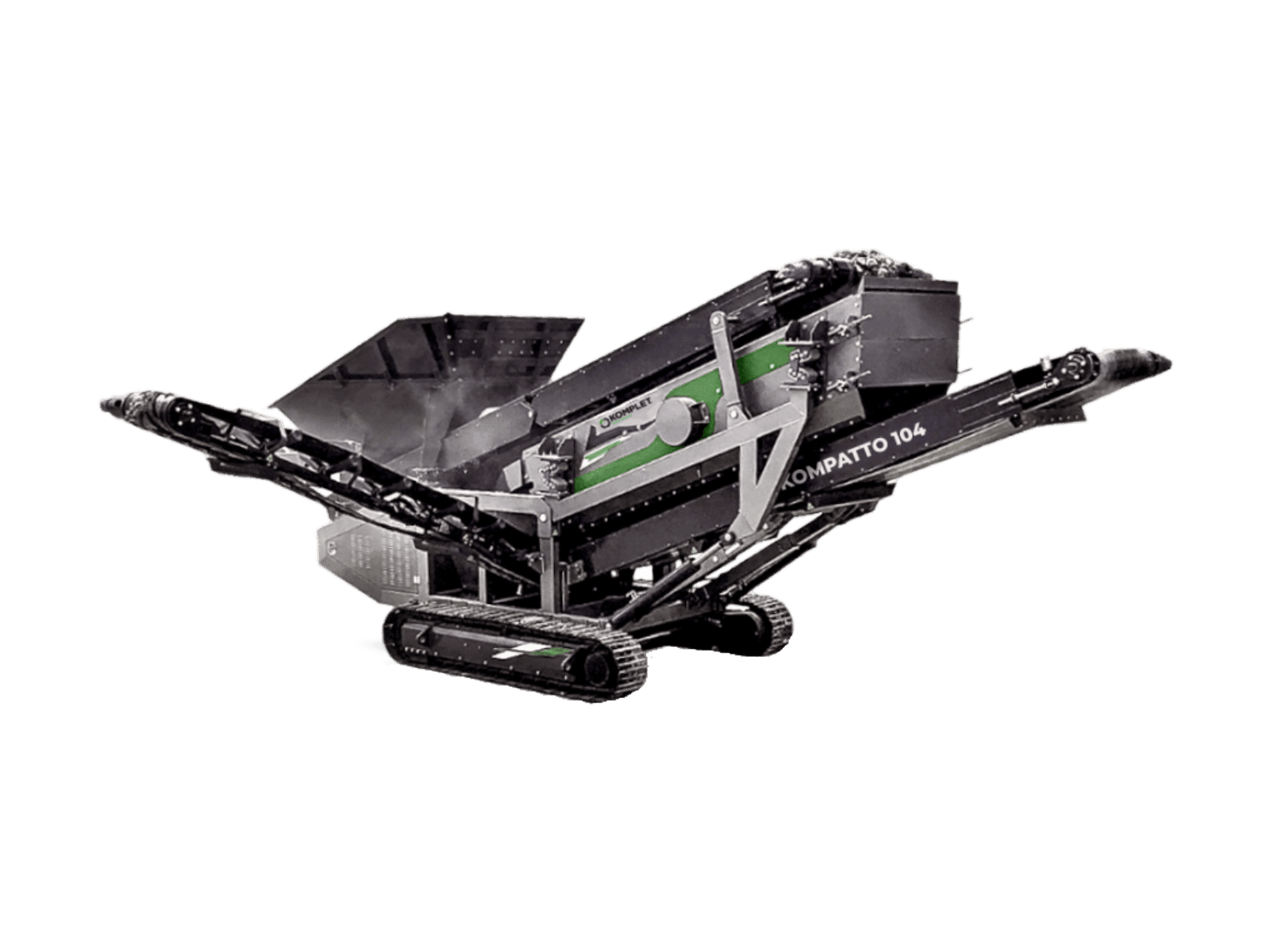

Kompatto 104 Compact Screener
12 MONTHS / 1000 HOURS WARRANTY
Whichever is earlier
Kompatto 104 Compact Screener
- Engine Type
- Screen Size
- Production
- Weight
45 HP Diesel Engine
9’9″ x 4′
Up to 220 TPH
17,636 lb
ENGINE TYPE 45 HP Diesel Engine
SCREEN SIZE 9’9″ x 4′
PRODUCTION Up to 220 TPH
WEIGHT 17,636 lb
Kompatto 104 Overview
Have you struggled to have construction materials processed on your job site, without the hassle? Whether you are a small to medium-sized operator or contractor, we have crafted an ideal and affordable solution. Introducing the Kompatto 104, our mobile scalping screener that can be applied to a large variety of applications such as sand and gravel, aggregates, and recycling. Enjoy the fast setup time, the simplicity of operating the machine, and the high-performing double deck screen box and TWO hydraulically folding stockpile conveyors. This screener can take on a variety of applications with a capacity of up to 220 tons per hour. Cut overall costs on waste disposal with the affordable and extremely versatile Kompatto 104 mobile screener. Connect with us to learn how the Kompatto 104 can boost job site productivity while reducing waste on your next project.
PROPERTIES
GENERAL SPECS
GENERAL SPECS
Engine Type
Doosan Tier 4 Final
Engine Horsepower
45 hp
Screen Size
9’9″ ✕ 4′
Working Size (L ✕ W ✕ H)
25’9″ ✕ 23’6″ ✕ 10’2″
Transport Size (L ✕ W ✕ H)
25’5″ ✕ 7’3″ ✕ 9’8″
Weight
17,636 lb
FEATURES
FEATURES
High capacity up to 220 tph (depending on feed size, mesh & material type)
Removable grid for screening before crusher
Grid for screening after crusher
Variable speed feeder
Hydraulically folding conveyors
Easy & intuitive buttons operations
Wireless remote control
Quick set-up time
