Vibrating screens are the workhorse of any aggregate, recycling, or demolition operation. They separate crushed material into spec sizes that customers will actually pay for. But not all vibrating screens are the same — the way the screen deck moves, the geometry of that motion, and the resulting material behavior all change how the screen performs on different feed materials and at different throughput levels.
This guide walks through the practical differences between linear vibrating screens, circular vibrating screens, and elliptical vibrating screens — the three primary motion types — including how each one moves material, what each is best at, and how to pick the right type for aggregate, C&D recycling, demolition, and quarry applications. We also cover where Komplet’s Kompatto vibrating scalping screens fit in this framework.
How Vibrating Screens Actually Work
Every vibrating screen has the same basic job: separate material by particle size. Material lands on an inclined screen deck (a metal frame holding mesh or perforated plate). The deck shakes — driven by a vibrator motor or eccentric weight — and the shaking moves material across the surface. Particles smaller than the mesh openings fall through to the next deck or onto a discharge conveyor. Larger particles travel along the surface and exit at the deck end as oversize.
What separates one vibrating screen type from another is the motion pattern of the deck. The way the deck moves changes how material behaves on the surface — how fast it travels, how much it bounces, how often each particle is presented to the mesh openings, and how the screen handles wet, sticky, or fine material. Three motion types dominate the industry:
- Linear motion — material moves in a straight line along the deck surface
- Circular motion — material moves in a roughly circular trajectory at each point on the deck
- Elliptical motion — a hybrid combining elements of both, common in modern scalping applications
Each motion type produces different separation efficiency, different throughput, and different material-handling characteristics. The right choice depends on what you’re screening.
Linear Vibrating Screens
How They Work
A linear vibrating screen uses two counter-rotating eccentric shafts (or two synchronized vibrator motors mounted at opposing angles) that produce vibration forces canceling out their horizontal components. The result is a vibration force that pushes material in a straight line — typically forward and slightly upward — along the deck surface.
Material on a linear screen advances steadily across the deck in a controlled trajectory. Each particle is presented to the mesh openings repeatedly during travel, giving high probability of correct separation for any given particle. Linear screens typically operate at lower angles than circular screens (often 0-10 degrees) because the linear motion provides the conveying action.
Strengths
- High separation accuracy — material gets multiple presentation cycles to the mesh, improving the cut at each size break.
- Predictable material flow — straight-line travel produces consistent throughput and predictable retention time.
- Long deck options — linear motion supports very long screen decks (sometimes 20+ feet) without losing material control.
- Good for fine material — accurate cuts at smaller mesh sizes (e.g., separating fines from base aggregate).
- Lower deck angles — flatter installation requires less vertical clearance, which matters in some plant designs.
Limitations
- Can struggle with wet or sticky material — though linear motion is better than circular at handling moisture, very wet material with high fines content can still plate out on the deck.
- Lower throughput per square foot of deck area than circular screens — material doesn’t bounce as aggressively, so total tonnage per deck is lower.
- Twin motors require synchronized maintenance — when one motor drifts out of sync, separation degrades quickly.
Typical Applications
Linear screens dominate in operations requiring high accuracy at fine cuts: spec aggregate production where gradation tolerance matters, recycling facilities sorting mixed feed by size, washing plants where material is screened wet, and any application demanding tight control of the separation cut.
Circular Vibrating Screens
How They Work
A circular vibrating screen uses an eccentric weight on a single rotating shaft (the vibrator). The rotating eccentric mass creates centrifugal force that vibrates the entire deck in a roughly circular pattern. Each point on the deck moves through a small circle (typically 4-12mm diameter) thousands of times per minute.
Material on a circular screen bounces aggressively as it travels down the inclined surface. This bouncing action lifts the bed of material off the mesh repeatedly, giving smaller particles many opportunities to find an opening and pass through. Circular screens operate at steeper angles (typically 15-25 degrees) so gravity helps move material along the deck while the vibrating action provides the separation.
Strengths
- High throughput per deck area — aggressive bouncing action moves more tons per hour through a given deck size.
- Self-cleaning mesh — the bouncing action helps prevent fine material from packing into the mesh openings (less screen blinding).
- Better with dry, free-flowing material — circular motion excels at high-volume aggregate, base material, and quarry production where material is mostly dry.
- Simpler drive system — single shaft and eccentric weight is mechanically simpler and easier to maintain than twin-motor linear designs.
- Higher power efficiency at high throughput — single eccentric drive with optimized weight produces strong vibration with relatively modest motor draw.
Limitations
- Less accurate at fine cuts — the aggressive bouncing reduces particle-mesh contact time, sometimes letting near-size particles pass to the wrong fraction.
- Wet/sticky material can plug the deck — moist fines tend to bridge across mesh openings and fail to separate cleanly.
- Not ideal for very long decks — the circular motion can lose effectiveness over very long screen surfaces.
Typical Applications
Circular screens dominate in high-volume dry aggregate production, quarry operations, road base material screening, recycled concrete aggregate (RCA) production, and any scalping application where throughput matters more than tight tolerance at fine cuts. They’re the standard choice for most contractor-scale and mid-size aggregate operations.
Elliptical Vibrating Screens (Hybrid Motion)
Modern scalping screens often use elliptical motion — a hybrid that combines characteristics of both linear and circular. The motion path of the deck traces an ellipse rather than a true circle, with the major axis tilted along the direction of material flow. This delivers the throughput advantages of circular motion combined with the controlled material travel of linear motion.
Elliptical motion is particularly effective for primary scalping (separating oversize from feed before further processing), heavy-duty aggregate production, and applications where the screen needs to handle a wide range of feed sizes simultaneously. Many compact mobile scalping screens — including Komplet’s Kompatto lineup — use elliptical or modified circular motion to balance separation accuracy with throughput.
Side-by-Side Comparison
The differences in plain language:
- Motion path: Linear = straight line along deck. Circular = circular at each point. Elliptical = hybrid.
- Drive system: Linear = twin counter-rotating shafts/motors. Circular = single eccentric shaft. Elliptical = either, with adjusted geometry.
- Deck angle: Linear = 0-10 degrees typical. Circular = 15-25 degrees typical. Elliptical = adjustable.
- Throughput per deck area: Linear = lower. Circular = higher. Elliptical = high.
- Separation accuracy at fine cuts: Linear = best. Circular = fair. Elliptical = good.
- Wet material tolerance: Linear = better. Circular = worse. Elliptical = good.
- Best applications: Linear = spec aggregate, washing, fine cuts. Circular = high-volume dry aggregate. Elliptical = scalping, mobile applications, mixed feed.
Where Komplet’s Kompatto Scalping Screens Fit

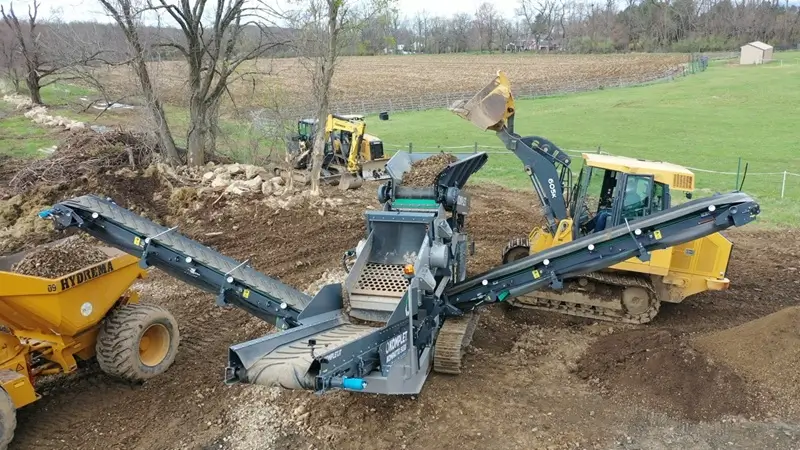

Komplet’s Kompatto vibrating scalping screens are designed for compact mobile aggregate, C&D recycling, and demolition applications. The Kompatto lineup uses circular/elliptical motion optimized for high throughput on dry to moderately moist crushed material — exactly the typical contractor-scale workload.
Kompatto 221
Kompatto 221 — up to 90 US tph, 7′ x 3.5′ two-deck screen. The most compact Kompatto, ideal for tight-access sites, smaller contractor operations, and rental fleets serving residential demo. Pairs naturally with the K-JC 503 or K-JC 604 jaw crushers. Approximately $104,935 list price.
Kompatto 5030
Kompatto 5030 — up to 280 US tph, 8′ x 3′ top deck plus 7′ x 3′ bottom deck. Komplet’s best-selling screener, with fast hydraulic conversion between 2-way and 3-way split configurations. Screens from 1/4″ topsoil fines up to 5″ oversize. The natural pair for the K-JC 704 PLUS in C&D recycling applications. Approximately $209,061 list price.
Kompatto 124
Kompatto 124 — up to 350 tph, 11.8′ x 3.7′ top deck. Komplet America’s largest mobile scalping screen, built for high-volume RCA producers, large compost facilities, and rental fleets needing serious daily throughput in a still trailer-portable package. Approximately $268,070 list price.
When to Consider a Trommel Instead
If your material is heavy in moisture, organics, compost, or topsoil — or if you’re processing biomass, mulch, or mixed organic streams — a Komplet trommel screener (K-TS 30 or K-TS 40) is usually a better fit than any vibrating screen. Trommels handle wet and sticky material that plugs vibrating screens, and the gentle drum action preserves soil and compost structure. For most dry crushed aggregate and C&D applications, vibrating scalping is the right choice. For organics-heavy material, trommels win.
How to Choose Between Vibrating Screen Motion Types
Match the screen technology to your material and throughput. The decision questions:
- How much volume? High-throughput aggregate or RCA production: circular or elliptical wins. Tight-tolerance fine spec aggregate: linear wins.
- How dry is your feed? Mostly dry crushed material: any motion type works, with circular/elliptical preferred for throughput. Wet, sticky, or organic: trommel beats any vibrating screen.
- How accurate does the cut need to be? Critical-tolerance DOT spec aggregate at fine sizes: lean linear. Standard C&D base material: circular/elliptical handles it fine.
- How many spec sizes? Multi-fraction (3-way split) production: look at multi-deck designs like the Kompatto 5030. Two-way split: any single double-deck.
- Mobile or stationary? Mobile applications favor compact circular/elliptical designs (Kompatto). Stationary plants have more flexibility on motor configuration and deck length.
- Maintenance preferences? Single-shaft circular = simpler maintenance. Twin-motor linear = more synchronization complexity.
Frequently Asked Questions
What’s the main difference between linear and circular vibrating screens?
The way the screen deck moves. Linear screens move material in a straight line using two counter-rotating shafts or motors. Circular screens use a single rotating eccentric weight that vibrates the deck in a roughly circular pattern, causing material to bounce as it travels. Linear delivers higher separation accuracy at fine cuts; circular delivers higher throughput per deck area on dry aggregate.
Which type does Komplet use in the Kompatto screeners?
Komplet’s Kompatto scalping screens use circular/elliptical motion optimized for high-throughput crushed aggregate, C&D recycling, and demolition applications. This delivers the throughput needed for contractor-scale operations while still maintaining separation accuracy across the typical 1/4″ to 5″ range of cuts most customers need.
Can a vibrating screen handle wet material?
It depends on how wet. Damp material handles fine on circular and linear screens. Truly wet, muddy, or sticky material with high fines content tends to plate out on a vibrating deck and reduce throughput. For wet material, organics, or compost, a trommel screen is almost always the better choice.
Why are circular screens more common in mobile aggregate operations?
Three reasons. First, circular motion delivers more tons per square foot of deck area, which matters when the machine has to fit on a tracked chassis with limited footprint. Second, the single-shaft design is mechanically simpler and easier to maintain in field conditions. Third, the aggressive bouncing action self-cleans the mesh and resists screen blinding from typical aggregate fines. For mobile contractor-scale work, circular wins on practicality.
What’s an elliptical vibrating screen?
Elliptical motion is a hybrid combining linear and circular characteristics. The deck moves in an elliptical path with the major axis tilted along the direction of material flow. This delivers the throughput advantages of circular motion combined with the controlled material travel of linear motion. Many modern scalping screens — including most compact mobile units — use elliptical or modified circular motion as a practical optimum for mixed-feed applications.
How big are the screen openings on a Kompatto?
The Kompatto 221, 5030, and 124 all support a wide mesh range, from 1/4″ fines up to 5″ oversize, depending on which mesh is installed. Mesh changes are accomplished during scheduled service. The Kompatto 5030 and 124 both support 3-way split configurations, producing three spec sizes from a single pass through the screen.
Which is better for screening crushed concrete?
For crushed concrete (RCA production), circular or elliptical motion handles the typical dry-to-moderately-moist feed efficiently at high throughput. Komplet’s Kompatto 5030 is the typical choice for C&D recycling operations, paired with a K-JC 704 PLUS jaw crusher. The 3-way split capability lets you produce 3/4″ base, 1-1/2″ drainage, and oversize from a single workflow.
Can a vibrating screen replace a trommel for topsoil?
Sometimes — for dry, well-conditioned topsoil at high volumes, a vibrating screen can deliver good results with higher throughput than a trommel. For most landscape supply yards, compost operations, and topsoil producers handling moist or organic-rich material, trommels (K-TS 30 or K-TS 40) are the better tool. The gentle drum action handles moisture and organics that would plug a vibrating deck, and the tumbling motion preserves soil structure that aggressive vibration can pulverize.
Final Thoughts
Linear, circular, and elliptical motion all have legitimate roles in modern screening operations. Linear excels at tight-tolerance fine cuts and washing applications. Circular delivers the throughput needed for high-volume aggregate and RCA production. Elliptical hybrids combine elements of both for mobile scalping applications. The right choice depends on what you’re screening, how much volume you need, and how accurate the cut has to be.
For most contractor-scale, C&D recycling, demolition, and aggregate operations, the practical answer is a Komplet Kompatto vibrating scalping screen using circular/elliptical motion — built for compact mobile use, high throughput, and the kind of dry-to-moderately-moist crushed material these operations actually produce. For organics, compost, mulch, and moist topsoil, our K-TS 30 and K-TS 40 trommels are the better tool. Browse the full screener lineup to compare specs, or call us and we’ll help you spec the right machine for your material.
