Crushing Equipment • K-JC Series
K-JC 503 Mini Jaw Crusher
By Komplet America — Exclusive Distributor, North & Central America

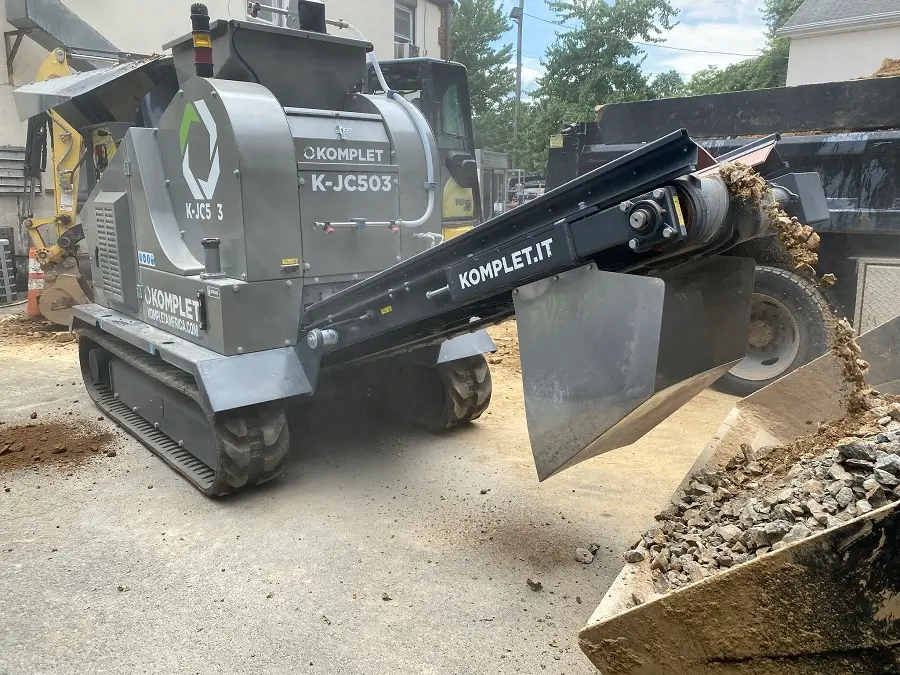

The Komplet K-JC 503 is Komplet America’s most compact tracked jaw crusher — a mini mobile crusher built for contractors, landscapers, and recyclers working on tight job sites. Powered by a 25 hp Kubota Stage V diesel engine and equipped with a hydraulically adjustable 19″ × 12″ single-toggle jaw, it produces reusable aggregate from concrete, brick, softer stone, and cold asphalt at up to 34 tons per hour. Weighing just 7,496 lbs and measuring under 5 feet wide, it transports easily behind a pickup truck and fits through residential gates and basement-access points other crushers cannot reach.
Specifications
Engine | 25 hp Kubota Stage V Diesel |
Jaw Size | 19″ × 12″ single-toggle, hydraulically adjustable |
Production | Up to 34 US tons per hour |
Output Size | 3/4″ to 3-1/4″ |
Weight | 7,496 lbs |
Working Dimensions (L × W × H) | 15′ × 5′ × 6’6″ |
Transport Dimensions (L × W × H) | 9’8″ × 5′ × 7’2″ |
Drive System | Rubber tracks — self-propelled |
Recommended Feed Size | 10″ minus |
Best Materials | Concrete, softer stone, brick, cold asphalt, natural rock |
Standard Features | Magnetic separation, wireless remote control, dust suppression, ultrasonic feed sensor |
Warranty | 12 months or 1,000 hours, whichever comes first |
Base Price | $108,695.73 (includes magnetic attachment) |
Equipment prices are subject to change based on dealer location, availability, and any additional features or customizations. Prices do not include taxes, shipping, or installation fees, which may apply depending on your region. Contact Komplet America at 908-369-3340 or visit kompletamerica.com for current pricing.
Frequently Asked Questions
What is the Komplet K-JC 503 mini jaw crusher used for?
The Komplet K-JC 503 is a compact, tracked mini jaw crusher used to process concrete, softer stone, brick, cold asphalt, and natural rock directly on small or tight-access job sites. It is designed for contractors, landscapers, hardscapers, pool and basement waterproofing crews, and small recyclers who need on-site crushing without the size, weight, or capital cost of a larger machine. By turning demolition and excavation waste into reusable aggregate at the job site, the K-JC 503 helps eliminate haul-away costs and reduce landfill fees.
How small is the K-JC 503 and where can it fit?
The K-JC 503 is Komplet America’s most compact tracked jaw crusher. It weighs 7,496 lbs and measures only 5 feet wide and 9 feet 8 inches long in transport configuration — small enough to be towed behind a standard pickup truck and to fit through residential gates, basement access points, and other tight openings that larger crushers cannot reach. Its rubber tracks let it self-propel into position without a crane or wheel loader.
What is the production capacity of the K-JC 503?
The K-JC 503 produces up to 34 US tons per hour, depending on material type, input size, and output setting. It uses a 19 by 12 inch single-toggle jaw inlet powered by a 25 hp Tier 4 Final diesel engine. For best results, material should be pre-processed to roughly 10 inches minus before entering the jaw. Output size is hydraulically adjustable from 3/4 inch to 3-1/4 inch, allowing operators to dial in the exact end product needed for each job.
What materials can the K-JC 503 crush?
The K-JC 503 handles hard, brittle materials including concrete, brick, softer stone, cold asphalt, and other natural rock. It is not recommended for soft, gummy, or fibrous materials like clay or wood. For mixed C&D waste containing wood, drywall, or softer materials, the Komplet Krokodile PLUS slow-speed shredder is the better starting point. The 19 by 12 inch jaw inlet means feed material should be sized to approximately 10 inches minus before crushing.
How does the K-JC 503 compare to the K-JC 704 PLUS?
The K-JC 503 is significantly smaller and lighter than the K-JC 704 PLUS. The 503 has a 19 × 12 inch jaw, produces up to 34 tph, and weighs 7,496 lbs — small enough to tow behind a pickup truck. The 704 PLUS has a 27 × 16 inch jaw, produces up to 90 tph, and weighs 26,455 lbs. The 503 is the right choice for landscapers, hardscapers, pool and basement crews, and any contractor working in tight residential or urban environments. The 704 PLUS suits higher-volume operations, yard-based recycling, and rental fleets. Both are tracked, portable, and serviced through Komplet America’s New Jersey warehouse.
Who distributes and services the K-JC 503 in North America?
Komplet America is the exclusive distributor of Komplet equipment throughout North and Central America, including the United States, Canada, Mexico, Central America, and surrounding islands. Komplet America is based in Hillsborough, New Jersey, and sells through an authorized dealer network. Wear parts and routine maintenance components are stocked at the NJ warehouse — Komplet America forecasts equipment and parts a year in advance to minimize customer downtime. Sales and service: 908-369-3340.
What warranty does the K-JC 503 come with?
The K-JC 503 comes with a 12-month or 1,000-hour warranty, whichever comes first. Komplet America stocks common wear parts — including jaw plates, belts, and filters — at its New Jersey warehouse, and offers on-site and remote technical support through the Komplet Certified Technicians Network throughout North and Central America. The Komplet America team is factory-certified in Italy for installation, servicing, and operator training.
Can I finance the K-JC 503?
Yes. Komplet America offers equipment financing through Komplet Capital, the in-house finance team. Features include 100% financing available, term options of 36, 48, 60, and 72 months, and 24-hour approval. Pricing for the K-JC 503 starts at $108,695.73 for the base unit with magnetic attachment — the most affordable entry point in the Komplet jaw crusher lineup. Pre-owned options are also available with typical capital savings of 40 to 70 percent versus new. Visit kompletamerica.com/equipment-financing or call 908-369-3340 to speak with a financing specialist.
