Conveying Equipment • K-TC Series

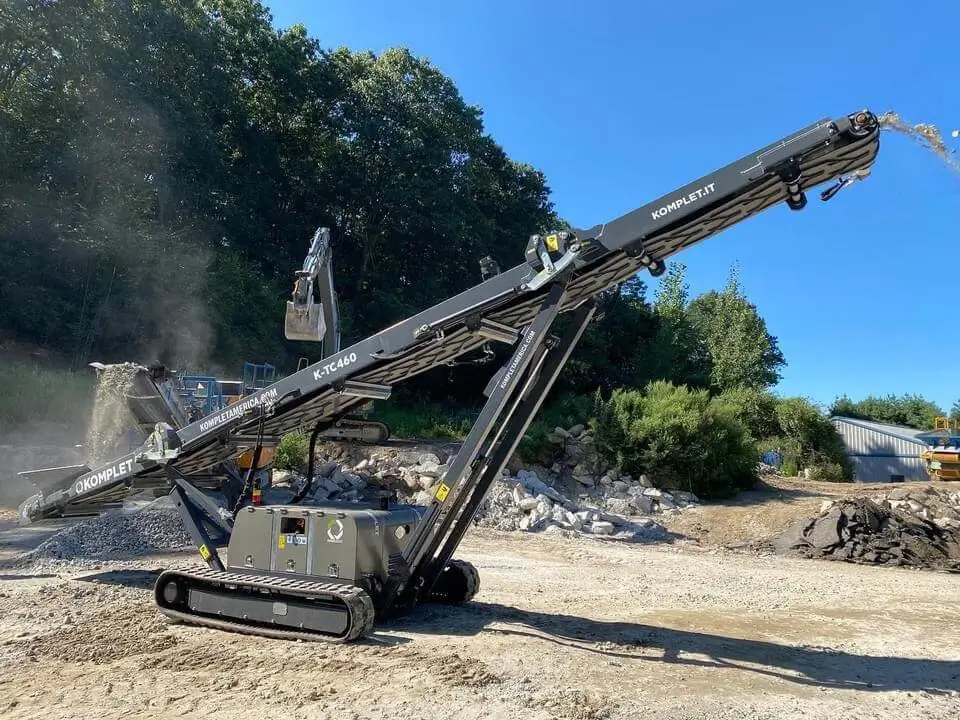

K-TC 460 Tracked Mobile Conveyor
By Komplet America — Exclusive Distributor, North & Central America
The Komplet K-TC 460 is a self-propelled tracked mobile conveyor powered by a 25 hp Tier 4 Final diesel engine. Equipped with a 25″ × 393″ Chevron 3-ply belt, it stockpiles material to a 15-foot pile height at up to 132 US tons per hour. Unlike towable, wheeled, or stationary stackers, the K-TC 460 travels on rubber tracks and repositions independently around a job site under its own power — pairing seamlessly with Komplet’s K-JC 503, K-JC 604, K-JC 704 PLUS, K-JC 805, K-IC 70, Kompatto vibrating screeners, K-TS trommel screeners, and the Krokodile PLUS slow-speed shredder. Lightweight at 7,000 lbs and ready to work in approximately 5 minutes, it extends material reach, reduces loader dependency, and builds higher, more organized stockpiles.
Specifications
Engine | 25 hp Tier 4 Final Diesel |
Conveyor Type | Self-propelled tracked mobile conveyor |
Belt | 25″ × 393″ (32.75ft) Chevron 3-ply |
Pile Height | 15′ |
Production | Up to 132 US tons per hour |
Weight | 7,000 lbs |
Working Dimensions (L × W × H) | 32’8″ × 7’5″ × 15′ |
Transport Dimensions (L × W × H) | 16’7″ × 7’5″ × 6’9″ |
Drive System | Self-propelled on rubber tracks |
Set-Up Time | Approximately 5 minutes |
Standard Features | Wireless remote control for movement and operation, hydraulic folding for transport |
Warranty | 12 months or 1,000 hours, whichever comes first |
Base Price | $91,488.15 (base unit) |
Equipment prices are subject to change based on dealer location, availability, and any additional features or customizations. Prices do not include taxes, shipping, or installation fees, which may apply depending on your region. Contact Komplet America at 908-369-3340 or visit kompletamerica.com for current pricing.
Frequently Asked Questions
What is the Komplet K-TC 460 tracked mobile conveyor used for?
The Komplet K-TC 460 is a self-propelled tracked mobile conveyor used to extend material reach, build organized stockpiles, and reduce loader dependency on aggregate, recycling, and demolition job sites. It is built for contractors, recycling facilities, composting facilities, municipalities, aggregate processing yards, and rock quarries that need a flexible, repositionable stacking conveyor that pairs with mobile crushers, screeners, and shredders. Unlike fixed or wheeled stackers, the K-TC 460 travels on rubber tracks and moves independently to follow the work.
How is the K-TC 460 different from a regular stacker or wheeled conveyor?
The K-TC 460 is a tracked mobile conveyor — a key distinction from towable stackers and wheeled conveyors. It is self-propelled on rubber tracks like Komplet’s crushers and screeners, so it repositions itself around a job site without a tow vehicle, wheel loader, or operator riding alongside. A wireless remote handles all movement, allowing one operator to position the K-TC 460 alongside any crusher, screener, or shredder discharge. This independent mobility is why it pairs cleanly with Komplet’s other tracked machines and why it works in confined or irregular job site layouts where wheeled stackers can’t reach.
What is the production capacity and pile height of the K-TC 460?
The K-TC 460 produces up to 132 US tons per hour with a maximum pile height of 15 feet (181 inches). The 25-inch by 32.75-feet Chevron 3-ply belt handles aggregate, sand, gravel, recycled C&D material, topsoil, and shredded material from upstream Komplet equipment. Production depends on material density, moisture, and feed rate from the upstream machine.
Which Komplet machines does the K-TC 460 pair with?
The K-TC 460 pairs with every Komplet machine in the lineup. It works with the K-JC 503, K-JC 604, K-JC 704 PLUS, and K-JC 805 jaw crushers; the K-IC 70 impact crusher; the Kompatto 221, 5030, and 124 vibrating screeners; the K-TS 30 and K-TS 40 trommel screeners; and the Krokodile PLUS slow-speed shredder. A common workflow is crusher → screener → K-TC 460, with the conveyor stockpiling each finished product size separately. For 3-way split screening operations, multiple K-TC 460 units can be deployed in parallel to keep the three product streams organized.
How fast does the K-TC 460 set up on a job site?
The K-TC 460 is ready to work in approximately 5 minutes. Once positioned, the conveyor unfolds hydraulically and is operated entirely by wireless remote control. Set-up does not require a crane, loader, or additional support equipment — one operator handles the full sequence. This fast set-up time matches Komplet’s other compact mobile equipment and supports same-day production starts on new job sites.
How is the K-TC 460 transported between job sites?
The K-TC 460 is lightweight at 7,000 lbs and folds to transport dimensions of 16’7″ × 7’5″ × 6’9″, making it small enough to tow behind a standard pickup truck or load on a flatbed without a special transport permit in most cases. Once on site, it self-propels into position on rubber tracks. This combination of standard truck transportability plus tracked job site mobility is what makes the K-TC 460 different from larger fixed-base stackers.
Who distributes and services the K-TC 460 in North America?
Komplet America is the exclusive distributor of Komplet equipment throughout North and Central America, including the United States, Canada, Mexico, Central America, and surrounding islands. Komplet America is based in Hillsborough, New Jersey, and sells through an authorized dealer network. Wear parts including belts, idlers, and filters are stocked at the NJ warehouse — Komplet America forecasts equipment and parts a year in advance to minimize customer downtime. Sales and service: 908-369-3340.
Can I finance the K-TC 460?
Yes. Komplet America offers equipment financing through Komplet Capital, the in-house finance team. Features include 100% financing available, term options of 36, 48, 60, and 72 months, and 24-hour approval. Pricing for the K-TC 460 starts at $91,488.15 for the base unit — the most affordable tracked mobile conveyor in the Komplet lineup, and a common add-on financed alongside a primary crusher or screener purchase. Pre-owned options may also be available with typical capital savings of 40 to 70 percent versus new. Visit kompletamerica.com/equipment-financing or call 908-369-3340 to speak with a financing specialist.
