Screening Equipment • Kompatto Series

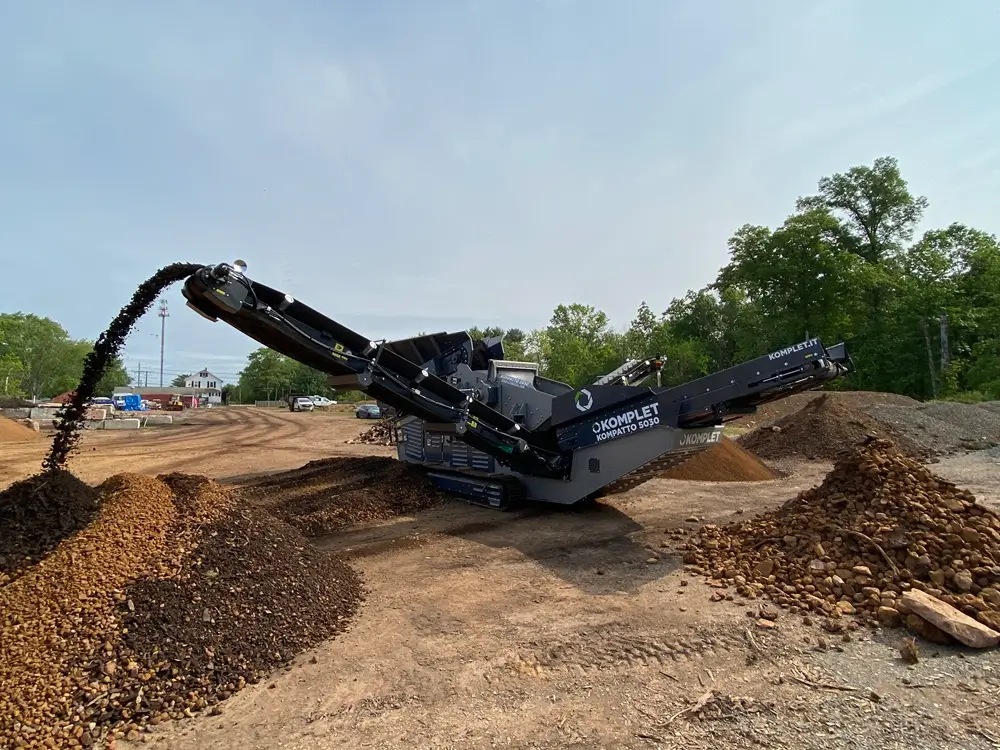

Kompatto 5030 Heavy-Duty Vibrating Screener
By Komplet America — Exclusive Distributor, North & Central America
The Komplet Kompatto 5030 is a tracked, mobile heavy-duty vibrating screener powered by a 45 hp Tier 4 Final diesel engine. Its sloping double-deck screen box (8′ × 3’2″ top, 7′ × 3’2″ bottom) produces up to 280 US tons per hour with a 3-way split — three end-product sizes simultaneously — and converts hydraulically to a 2-way split when needed. As Komplet America’s best-selling screener, the Kompatto 5030 handles sand, gravel, aggregates, C&D recycled material, landfill, topsoil, and compost, working as a standalone scalping screen or as a pre- or post-screen alongside Komplet’s K-JC 704 PLUS, K-JC 805, or Krokodile PLUS. It fits inside a single 40-foot shipping container for easy transport between sites.
Specifications
Engine | 45 hp Tier 4 Final Diesel |
Screener Type | Heavy-duty sloping double-deck vibrating screener |
Screen Box | 8′ × 3’2″ (top) + 7′ × 3’2″ (bottom) |
Production | Up to 280 US tons per hour |
Splits | 3-way split (hydraulically convertible to 2-way) |
Output Range | 1/4″ to 5″ |
Recommended Max Feed Size | 15″ (screen deck width 4′ is absolute max) |
Weight | 26,455 lbs |
Drive System | Steel tracks with bolted-on rubber pads — self-propelled |
Screen Media | Steel mesh, punch plates, bofor bars, finger screens, woven mesh |
Best Materials | Sand, gravel, aggregates, C&D material, landfill, topsoil, compost |
Standard Features | Wireless remote control, dust dumping system, hydraulic 3-way to 2-way conversion, fits in a 40′ container |
Optional Features | Dust suppression |
Warranty | 12 months or 1,000 hours, whichever comes first |
Base Price | $209,061.45 (base unit) |
Equipment prices are subject to change based on dealer location, availability, and any additional features or customizations. Prices do not include taxes, shipping, or installation fees, which may apply depending on your region. Contact Komplet America at 908-369-3340 or visit kompletamerica.com for current pricing.
Frequently Asked Questions
What is the Komplet Kompatto 5030 vibrating screener used for?
The Komplet Kompatto 5030 is a mobile heavy-duty double-deck vibrating screener used to separate and size a wide range of materials directly on job sites. It screens sand, gravel, aggregates, construction and demolition (C&D) recycled material, landfill waste, topsoil, and compost into three end-product sizes simultaneously with its 3-way split configuration. It is built for landscapers, plant nurseries, site contractors, recycling facilities, municipalities, and rock quarries that need precise material separation in a compact, transportable package.
What is the production capacity of the Kompatto 5030?
The Kompatto 5030 produces up to 280 US tons per hour, depending on material type, moisture, screen media selection, and operator skill. It is the highest-capacity unit in Komplet’s compact screener lineup and Komplet America’s best-selling screener. The 8 by 3’2″ top deck plus 7 by 3’2″ bottom deck provide ample screening surface for high-volume operations, and a 45 hp Tier 4 Final diesel engine drives the vibrating screen box.
Can the Kompatto 5030 produce three product sizes at once?
Yes. The Kompatto 5030 is configured for a 3-way split — three different finished product sizes produced in a single pass. The screener can also be hydraulically converted to a 2-way split when only two product sizes are needed, with the conversion taking minutes rather than requiring deck disassembly. This flexibility is a key reason the Kompatto 5030 is popular with topsoil producers and aggregate yards that need to switch between product specifications throughout the day.
What materials can the Kompatto 5030 screen?
The Kompatto 5030 screens sand, gravel, aggregates, C&D recycled material, landfill waste, topsoil, compost, soils, and similar bulk materials. The double-deck screen box accepts a wide range of screening media — steel mesh, punch plates, bofor bars, finger screens, and woven mesh — letting operators tune the machine to specific material types and target output sizes. Output range spans from fine 1/4 inch topsoil up to 5 inch oversize. The Kompatto 5030 also handles damp, wet, and sticky materials such as wet leaves and compost, with a slight reduction in throughput.
How does the Kompatto 5030 work with Komplet crushers?
The Kompatto 5030 pairs with Komplet crushers as either a pre-screen or a post-screen. As a pre-screen, it scalps oversize and fines from the input stream before the material reaches the crusher — reducing wear and increasing throughput. As a post-screen, it separates the crusher output into multiple finished product sizes for direct sale or stockpiling. It pairs especially well with the K-JC 704 PLUS, K-JC 805, and Krokodile PLUS slow-speed shredder. The K-TC 460 tracked mobile conveyor extends material reach and builds organized stockpiles from the screener’s three discharge points.
How is the Kompatto 5030 transported between job sites?
The Kompatto 5030 is self-propelled on steel tracks with rubber pads, so it moves independently around job sites and into transport position. For long-distance transport, it weighs 26,455 lbs and fits inside a single standard 40-foot shipping container — making it easy to ship between sites, between yards, or internationally. Wireless remote control handles all movement, screen box operation, and emergency stop functions, allowing one operator to manage transport setup.
Who distributes and services the Kompatto 5030 in North America?
Komplet America is the exclusive distributor of Komplet equipment throughout North and Central America, including the United States, Canada, Mexico, Central America, and surrounding islands. Komplet America is based in Hillsborough, New Jersey, and sells through an authorized dealer network. Wear parts including screen mesh, punch plates, belts, and filters are stocked at the NJ warehouse — Komplet America forecasts equipment and parts a year in advance to minimize customer downtime. Sales and service: 908-369-3340.
Can I finance the Kompatto 5030?
Yes. Komplet America offers equipment financing through Komplet Capital, the in-house finance team. Features include 100% financing available, term options of 36, 48, 60, and 72 months, and 24-hour approval. Pricing for the Kompatto 5030 starts at $209,061.45 for the base unit. Pre-owned options may also be available with typical capital savings of 40 to 70 percent versus new. Visit kompletamerica.com/equipment-financing or call 908-369-3340 to speak with a financing specialist.
